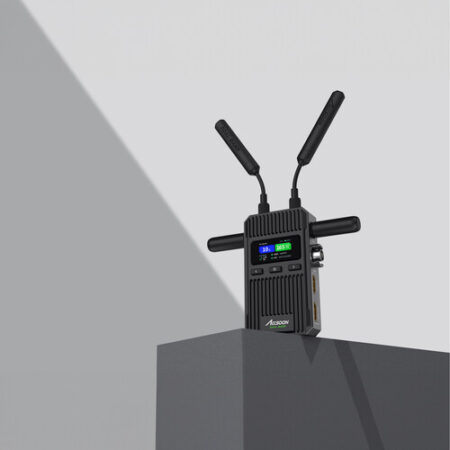

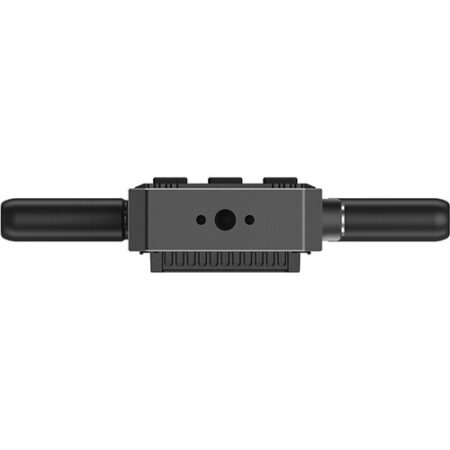

Name: Accsoon CineView 2 SDI
SKU: 20710
Price: 34000.00 INR
Availability: InStock

Monitor On Up
To Four Devices

Each CineView 2 transmitter can wirelessly send the video to any combination of dedicated CineView receiver units and smart devices ( both iOS and Android ) totaling up to four.

No Fan Noise, Quiet Shooting

Classic CineView design, ensuring efficient heat dissipation, quiet shooting with no fan noise.

CineView 2 SDI

Projects	Transmitter
Video Input	HDMI, 3G SDI
Video Output	HDMI Loop-Out
SDI Input Format	1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i 720p: 50/59.94/60p
HDMI Input Format	40962160: 23.98/24/25/29.97/30/50/59.94/60p 38402160: 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i 720p: 50/59.94/60p
HDMI Loop-out Format	Identical to the HDMI/SDI video input
DC Port	5.5mmx2.1mm, center positive
DC Voltage	7.4~16.8V
Battery	Compatible with NP-F550, NP-F750, NP-F970
USB-C Power Input	USB-C 5V/3A
Audio	44.1KHz/48KHz 16/20/24bit
Latency	＜50ms (Camera latency not included)
Display	1.47 inch Full-Color LCD Screen
Transmission Power	2.4GHz: 20dBm 5GHz: 20dBm
Transmission Range	1500ft/450m (No obstacles, no interference)
Power Consumption	<6W
Operating Environment Temperature	-10~40℃
Dimensions (Antennas Not Included)	60mm x 27.5 mm x 106.5mm
Weight (Antennas Not Included)	210g

Projects	Receiver
Video Output	HDMI, 3G SDI, UVC
SDI Output Format	1080p: 24/25/30/50/60p Level A 1080i: 50/60i 720p: 50/60p
HDMI Output Format	1080p: 24/25/30/50/60p 1080i: 50/60i 720p: 50/60p
DC Port	5.5mmx2.1mm, center positive
DC Voltage	7.4~16.8V
Battery	Compatible with NP-F550, NP-F750, NP-F970
USB-C Power Input	USB-C 5V/3A
Audio	44.1KHz/48KHz 16/20/24bit
Latency	＜50ms (Camera latency not included)
Display	1.47 inch Full-Color LCD Screen
Transmission Power	2.4GHz: 20dBm 5GHz: 20dBm
Transmission Range	1500ft/450m (No obstacles, no interference)
Power Consumption	<5W
Operating Environment Temperature	-10~40℃
Dimensions (Antennas Not Included)	60mm x 27.5 mm x 106.5mm
Weight (Antennas Not Included)	210g

Choose The Right CineView For You

	CineView 2 SDI	CineView SE	CineView HE	CineView Nano
Range	1500ft / 450m	1200ft/350m	1200ft/350m	500ft / 150m
Latency	<50ms	<50ms	<60ms	<60ms
TX Input & Output	SDI IN HDMI IN HDMI LOOP OUT	SDI IN HDMI IN	HDMI IN HDMI LOOP OUT	HDMI IN
Audio	44.1KHz/48KHz 16/20/24bit	44.1KHz/48KHz 16bit/24bit PCM	44.1KHz/48KHz 16bit/24bit PCM	44.1KHz/48KHz 16bit/24bit PCM via HDMI
RX Input & Output	SDI OUT HDMI OUT UVC Live Streaming	SDI OUT HDMI OUT	HDMI OUT UVC Live Streaming	/
Antenna	Swappable Antenna			Built-in Antenna
Receiver / App	Connect up to 4 receivers or Apps, mix and match			Connect up to 4 Apps
Powered By	NP-F Battery 7.4-16.8V DC IN 5V USB-C IN			NP-F Battery 5V USB-C IN
Dimensions	60mmx27.5mmx106.5mm (Antennas not included)	105mmx66mmx32mm (Antennas not included)	105mmx66mmx32mm (Antennas not included)	76mmx113mmx20mm
Weight	210g (Antennas not included)	210g (Antennas not included)	200g (Antennas included)	72.3g
